      Path Selection

      Origin automatically highlights a path for cutting whenever there’s a path inside the corrective range circle. If you have multiple paths inside the corrective range, then you will see the Path Selector Button appear above the corrective range circle.

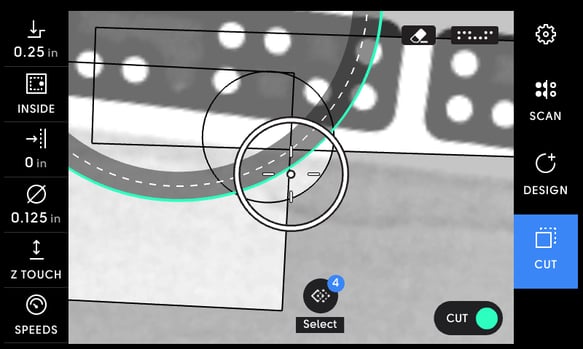

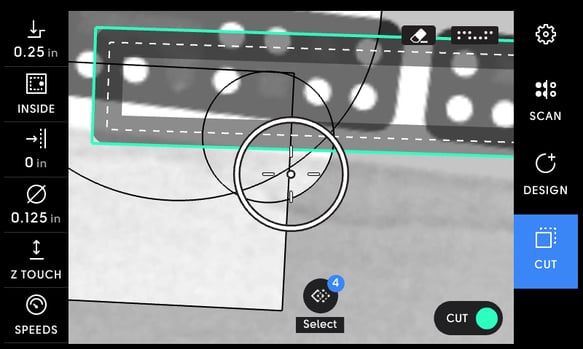

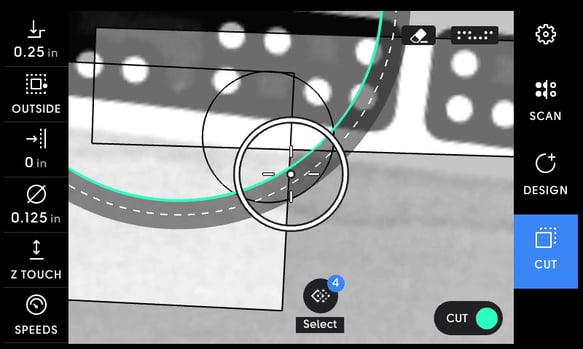

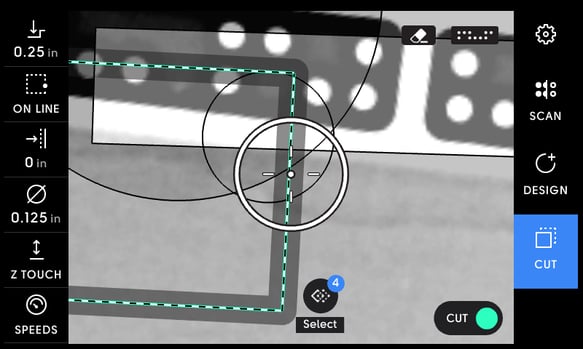

      Tap the path selector to cycle through the paths that lie within the corrective range. Once you have highlighted your intended path, you can begin cutting.




      Things to Remember:

      • The path selector tool allows you to toggle through all the cut paths that pass through the corrective circle. If the cut path that you are trying to select has an offset, then you may need to move Origin’s corrective circle in the direction of that offset, so that the offset cut path passes through the corrective circle.

      • You can change the cut specs (cut depth, cut offset, cut type) of a cut path when it is highlighted. Any change you make to the cut specs will only apply to the highlighted path.
