Plan Mode

Plan Mode allows you to encode some cut specs into your design so it's ready to cut when you load it onto Origin. Not all of these features will apply if you're preparing your file for another device or use.

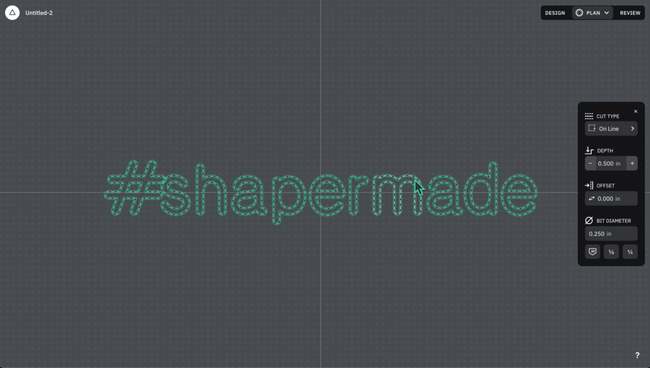

Cut Plan Menu

Cut Type

You can select cut types for your paths globally or individually. These cut types will carry over to Origin when you place your file.


Depth

Set the depth of your cuts. Choose from common presets or type in a custom value. Depth will set the Encoded Depth on Origin.


Offset

See how an offset will affect your design and plan accordingly. Offsets are not carried into the design when it's placed on Origin.


Bit Diameter

Select from the list of pre-set bit diameters or enter a custom bit diameter to visualize how your cut will be made with a selected cutter. Bit Diameter is not encoded into the design; you'll select your Bit Diameter on Origin before cutting.


Options


Use the Options Menu to change your canvas units and toggle the Cut Path Display on and off.
