Selecting Objects and Selection Manager

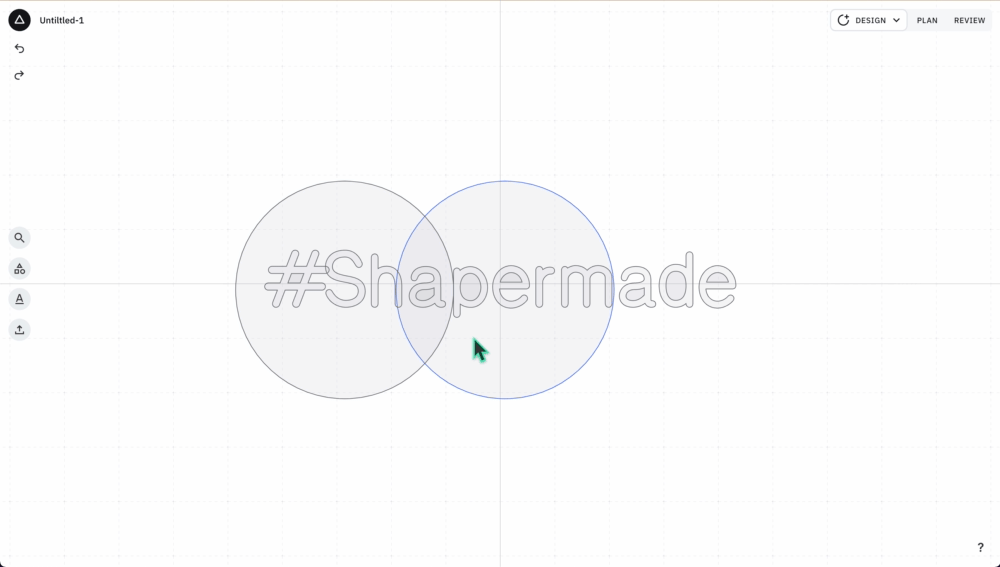

Click or tap repeatedly to toggle Between Overlapping Shapes.

To select a different shape in a stack, click the overlapping area to swap from one shape to another.

Select Multiple Shapes

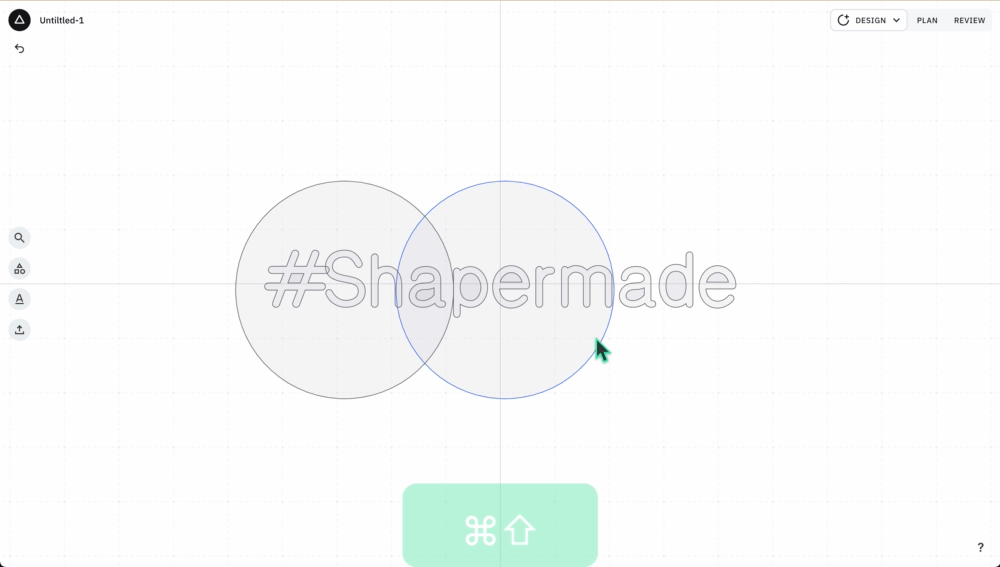

Hold Shift and click the individual shapes you want to select.

Hold Shift, click, and drag the mouse to create a selection box around the shapes that you want to select.

Alternatively, you can click (or tap), hold, and drag to draw a selection box. Hold for about 1.5 seconds to activate the selection box. The cursor will change symbols when it's ready to drag the box.

Selection Manager

When selecting multiple objects you can deselect or reselect any of the objects in the group using the Selection Manager. This will appear above the Edit Selection menu showing the number of selected objects. When opened all the objects currently selected will be available to select or deselect.
