Calculator Tools

The ontool Calculator has a number of features to help ensure precision in your projects.

Math

Basic Functions

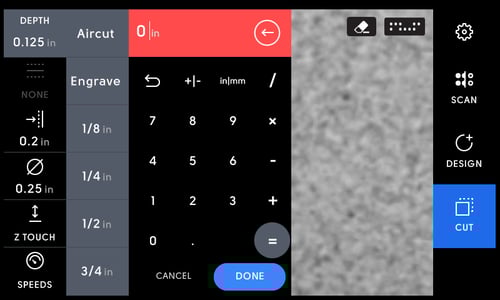

You can use Origin’s calculator in much the same way you would any other calculator, simply by entering the figures and operations you need on the screen

Once you've entered your equation, you can press = to see the result or press “Done” to apply the result and jump back to your Workspace.

Modifiers

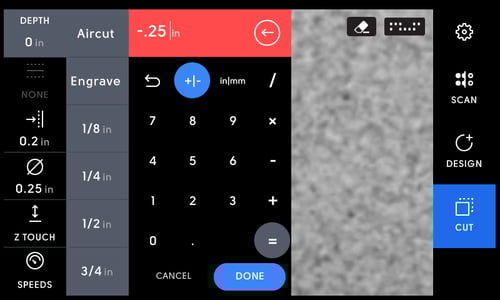

The +|- button will toggle the value of the last number you typed between positive and negative.

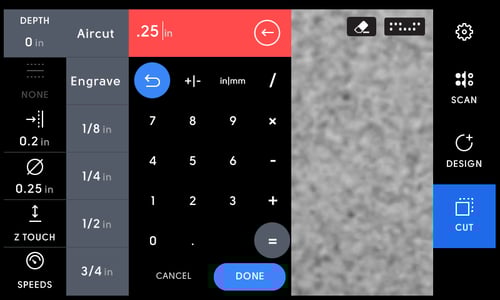

The Undo button will undo your last action, one step at a time

Tips and Tricks

Units

The Calculator will always default to the units that you’ve selected in the Settings Menu. But the Calculator will allow you to be flexible with your components.

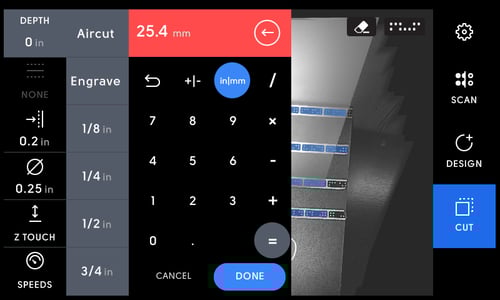

To change the units of a dimension, tap the in|mm button under the Entry Bar before or after you’ve typed it in.

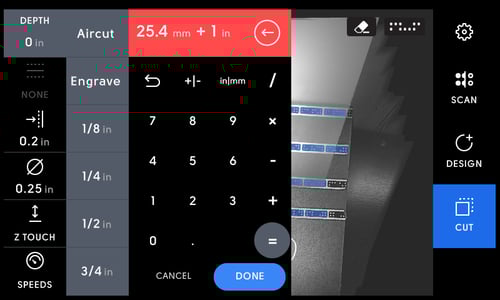

You can also use equations with mixed units by toggling the in|mm as you enter each value.

Origin will automatically convert the result of your equation into your global unit setting when you press = or Done. The result will always be in your default units.

Presets

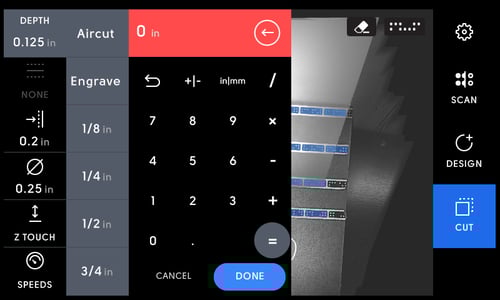

Some menus will have presets to the left of the Calculator for quick selection of common dimensions. When you select a preset dimension, Origin will immediately apply the new setting and jump back to the Workspace.

As a time saver, you can also increment by presets. To do so, just tap a preset after any operator and the Calculator will immediately insert the preset value into your equation and apply the result. If using a preset in an equation, it should always be the last value entered (it will trigger the equation to be solved and jump back to the workspace)
