Dogbone Rectangle

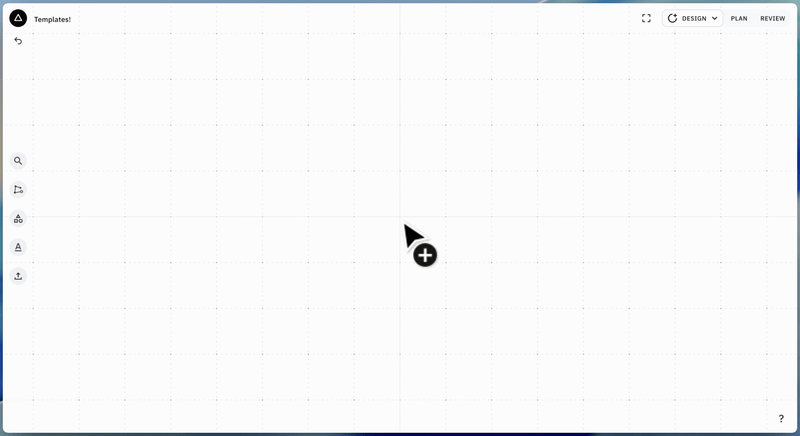

The Dogbone Rectangle creates a rectangle with Dogbones baked in that will scale appropriately, meaning keep their shape, when the object's size is adjusted:

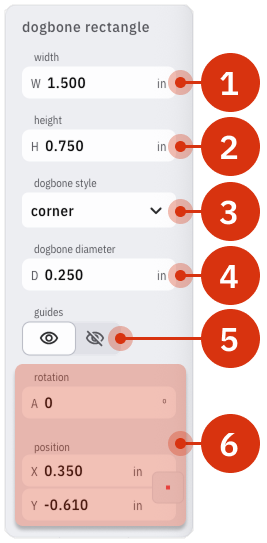

These parameters can be adjusted:

1. Width & Height adjusts the size of the rectangle factoring out the size of the dogbones
2. Dogbone Style adjusts the position of the Dogbones
3. Dogbone Diameter changes the diameter of the Dogbones, which should be slightly larger than the intended bit diameter
4. Guides adds or removes a guide to represent the intended size of the rectangle
5. Rotation and Position changes the angle and location of the barbell on the Studio Grid

Dogbones will refer to the bottom right corner of the rectangle sans Dogbone.
