Compass

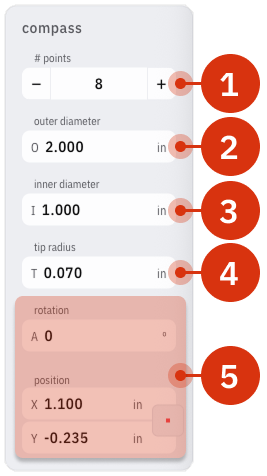

The Compass Template draws a bisected compass rose. The following parameters can be adjusted:

1. Points adds or subtracts points of the star
2. Outer Diameter scales the overall size of the rose
3. Inner Diameter sets the pits of the star to a particular diameter
4. Tip Radius curves the tips, typically used to account for the cutter diameter
5. Rotation and Position changes the angle and location of the Compass on the Studio Grid

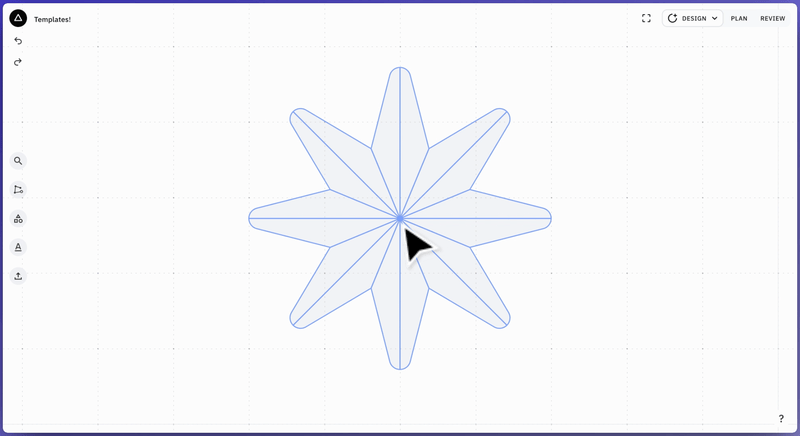

You can create a pocket for an inlay and retrieve a slice of the rose using ShapeShifter:
