Bowtie

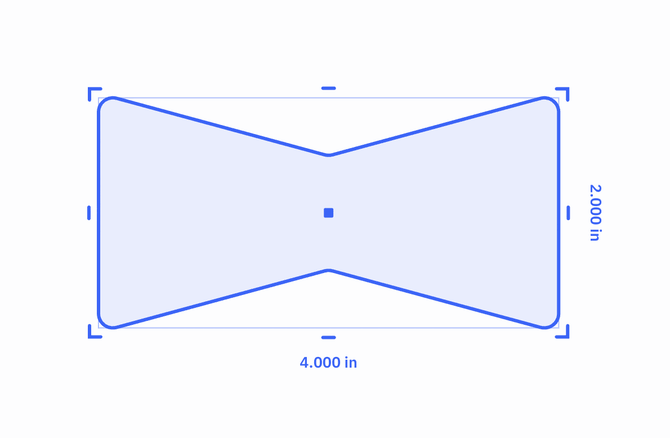

The Bowtie Template in Studio places a bowtie shape that can be adjusted into a custom shape and size.

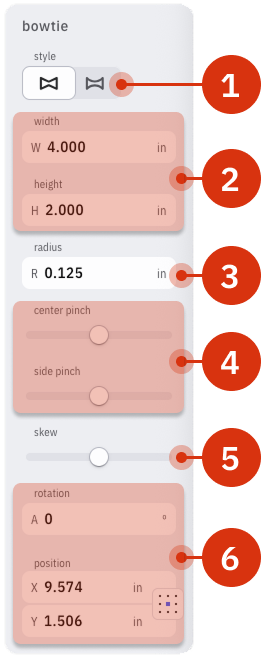

1. Style swaps between traditional bowtie style and a more curved style

2. Width and Height adjusts the desired size of the bowtie at it's widest points

3. Radius is the radius of the corners, usually determined by intended bit diameter

4. Center Pinch and Side Pinch adjusts the distance between the two narrow points

5. Skew is used to tilt elements of the bowtie

6. Rotation and Position changes the angle and location of the barbell on the Studio Grid
